The Grundfos ALPHA1 25-60 180 circulation pump has a connection size of 1 1/2", a head of 6 m and a maximum flow rate of 2.28 m³/h.
It has a protection degree of X4D and a maximum working pressure of 10 bar.
It is suitable for domestic or industrial heating systems with radiators, underfloor heating, for one-pipe and two-pipe systems, etc.
The pump housing is made of cast iron and is coated with a galvanized layer for additional corrosion resistance.
It is equipped with intelligent control and offers constant pressure and proportional pressure modes, as well as fixed performance curves, ensuring optimal operation across a wide range of installations.

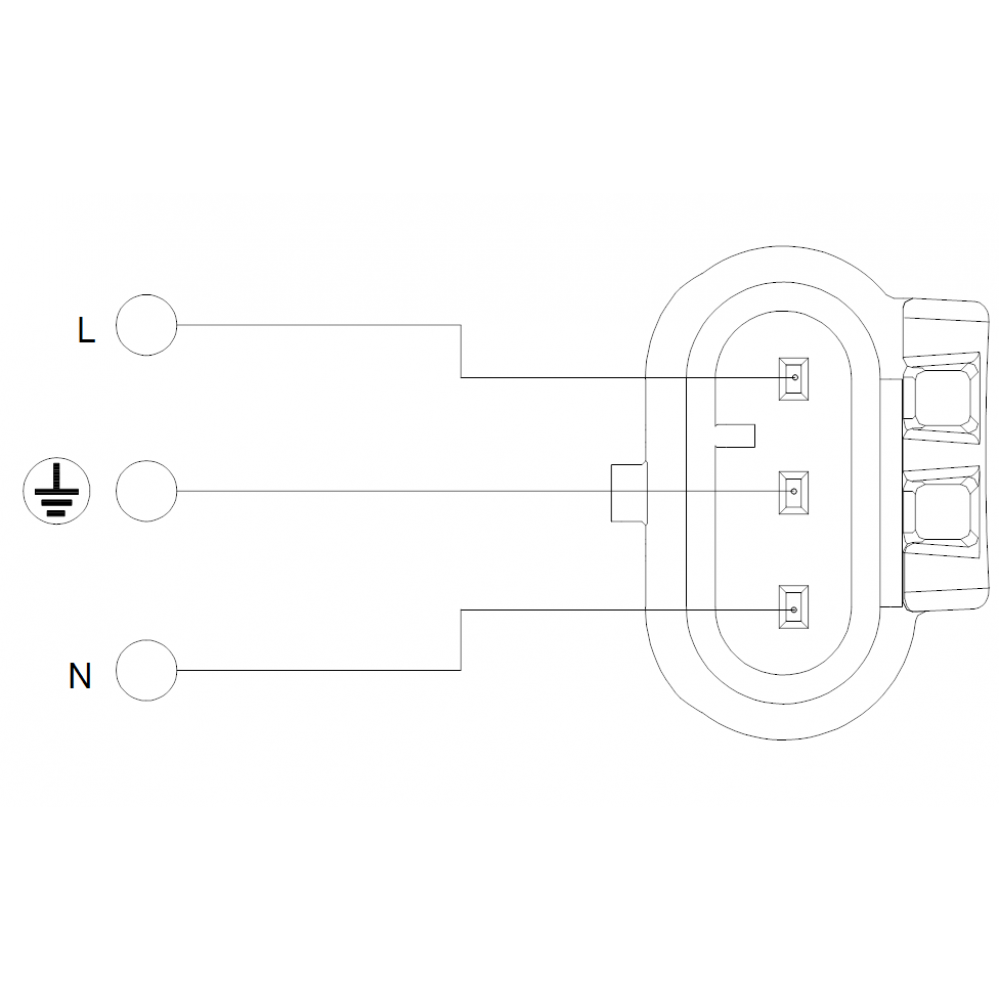

The tool-free electrical plug enables quick and easy installation, while the automatic air venting function and dry-running protection ensure quiet and reliable operation.
Thanks to its robust design and ceramic bearings, the pump provides a long service life and requires minimal maintenance.
Technical parameters:
| Characteristics | |
| Peso (kg) | 2.17 |
| País de fabricação | Sérvia |
| Garantia | 2 anos |
| Pressão de operação (bar) | Máximo 10 |
| Faixa de temperatura | -10°C a +110°C |
| Fonte de alimentação elétrica (V/Hz) | 220-240V-50/60Hz |
| Consumo de energia (W) | 4-45 |
| Taxa de fluxo | até 2.28 m³/h |
| Temperatura do meio | 0°C a +55°C |
| Fonte de energia [V] | 1 x 220-240V – 50/60 Hz |
| Classe de isolamento | F |
| Tipo | 25-60 180 |
